Hebei aoliande Chemical Equipment Co., Ltd
$500-2000 /Set/Sets
| Payment Type: | L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union,D/A |
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Transportation: | Ocean,Land,Air,Express,Express |
| Port: | Tianjin Port,All Ports in China |
Model No.: 5200*890*1370/1550
Brand: ald
Place Of Origin: China
Product Name: Copper Electrowinning,Electrolytic cell
Application: Electrolytic Cooper
Method: H2so4 Solution
Specification: 3600*1500*1200,Customized,Etc.
Capacity: 100000000t/Y
Type: Non-Ferrous Electrowinning/Electrorefin
| Selling Units | : | Set/Sets |
| Package Type | : | Steel Frame, Wood Saddle |
| Picture Example | : |
|
| Download | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
FRP Pipe/FRP Tank/Filament Winding Machine/Electrolytic Cell/FRP Grating Machine/ FRP Pultrusion Machine

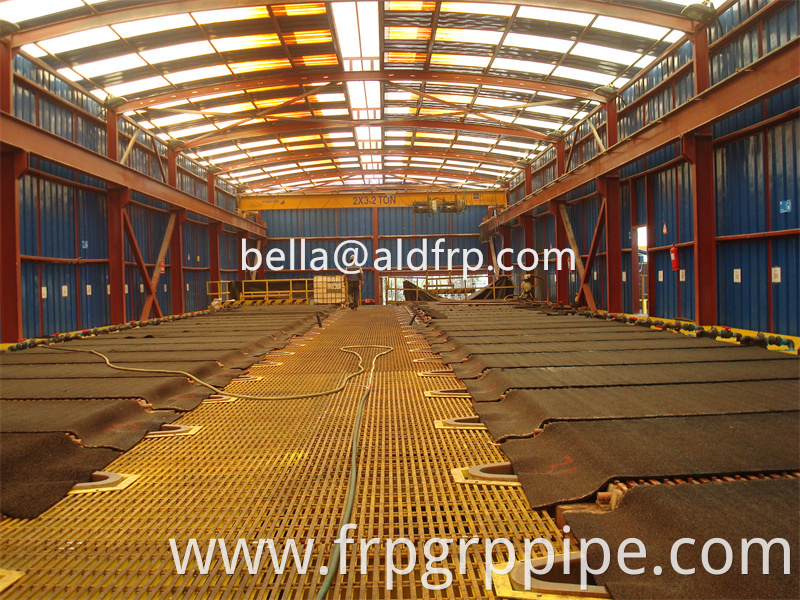

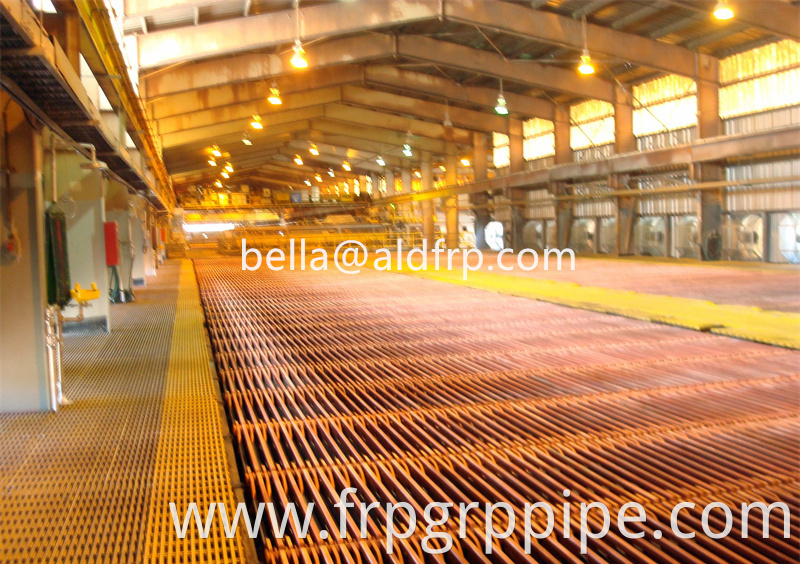

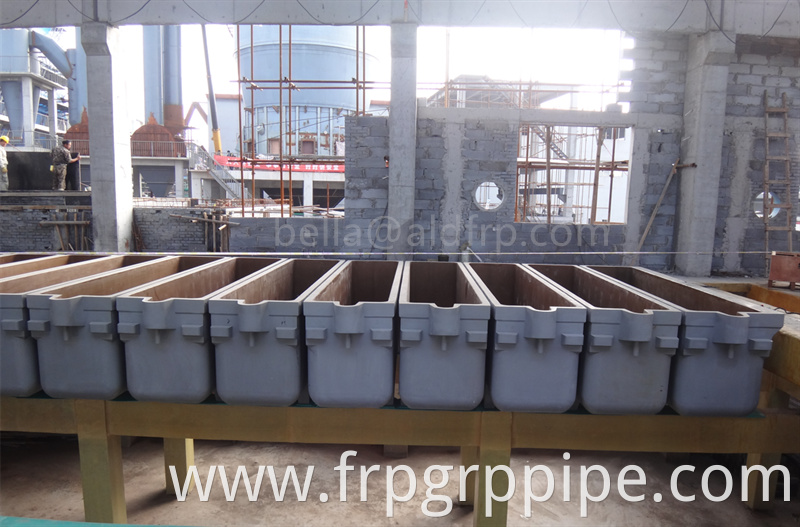

FRP electrolytic cells are designed, built and installed to satisfy the most stringent requirements requested by tank house operators worldwide. In most cases their main request is to guarantee full operating availability throughout the plant's lifespan, maximizing production of high-purity metal (copper, zinc, nickel, cobalt, lead or other nonferrous metals) with absolute safety for people and the environment. Additionally, cells must accommodate changes for continuous improvement of the electrolytic process, integrating efficiently with upgrades of complementary equipment such as anodes, cathodes, cap, boards, overhead crane electrolyte agitation systems, acid mist control devices, thermal insulation among many others.
● Long-term impermeability, free of corrosion, 30+ years warranty
Our monolithic internal tank manufactured with multiple layers of fiber-reinforced premium vinyl ester resin. It has continuous service without leakage, free of corrosion and structural flaws which operating under normal conditions as specified for each project.
● Swift, accurate and less costly installation
Electrolytic cells include features that allow reduction of 25% or more in time needed for cell erection, alignment and leveling compared to time required with conventional polymer concrete cells. Dimension tolerances for electrolytic cells are consistently tight, simplifying installation in the most demanding applications, including plants with automated crane systems.
● Minimum cleaning time and water consumption
The rounded internal shape, optional sloped cell floors, and smooth, flat finish of the internal tank, facilitate water sweeping and drainage of heavy sludge, with reduced water usage and accelerating return to service after each cleaning.
● Minimum maintenance cost
The robust, virtually impervious internal tank that is chemically bound to the polymer concrete structural core during molding is tolerant to operating abuse its smooth, non-stick surfaces minimize adhesion of contaminants.
● Maximum operational safety
The structural core of electrolytic cells is bolstered with sturdy external seismic reinforcement blocks confining its floor supports, and includes a robust, internal bidirectional, pultruded FRP bar mesh reinforcement which positively maintains integrity should the cell fail due to catastrophic events. Electrolytic cell installation protocols call for lateral wall collaboration between cells, thus reducing stress levels of cell around 40% under normal operating conditions
